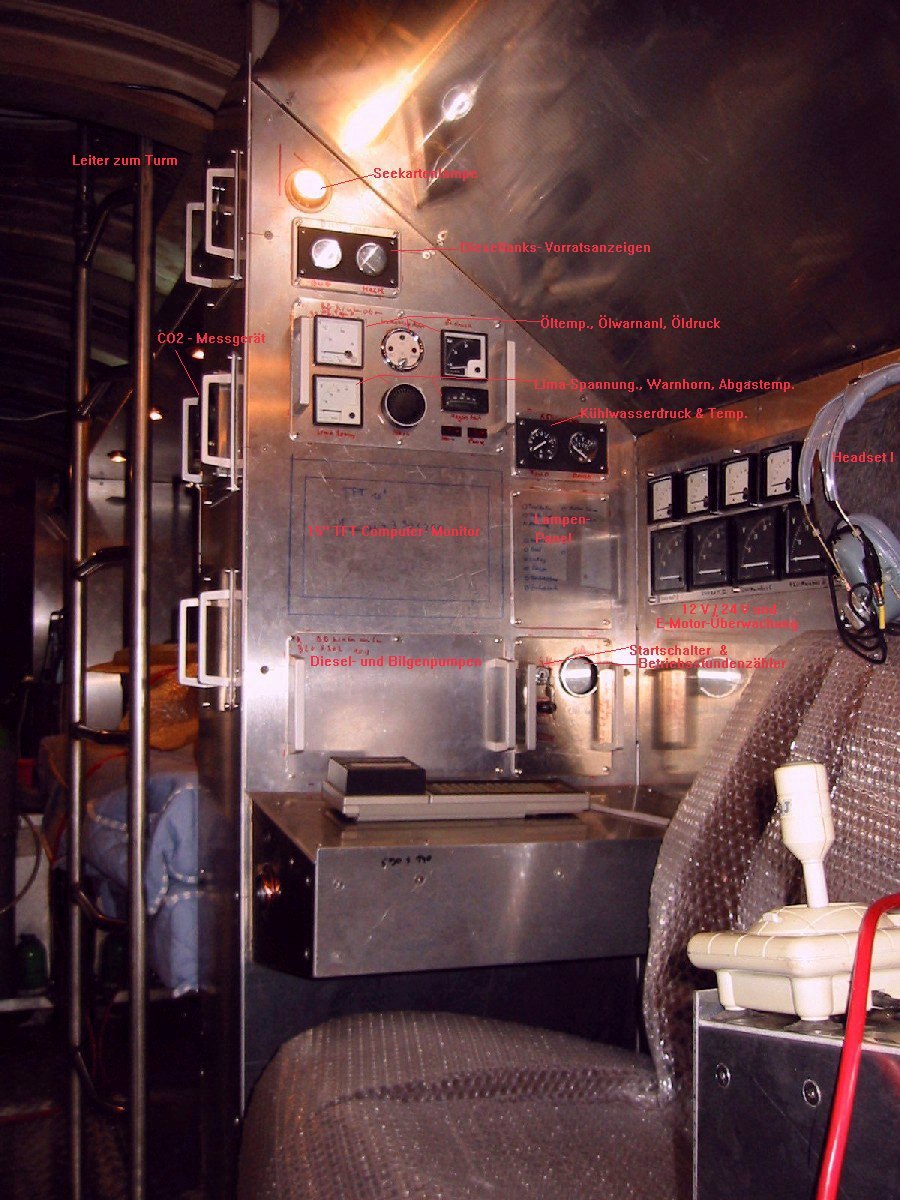

This is the machine control station, the place where the diesel and electric engines, the generator and the gearbox is controlled.

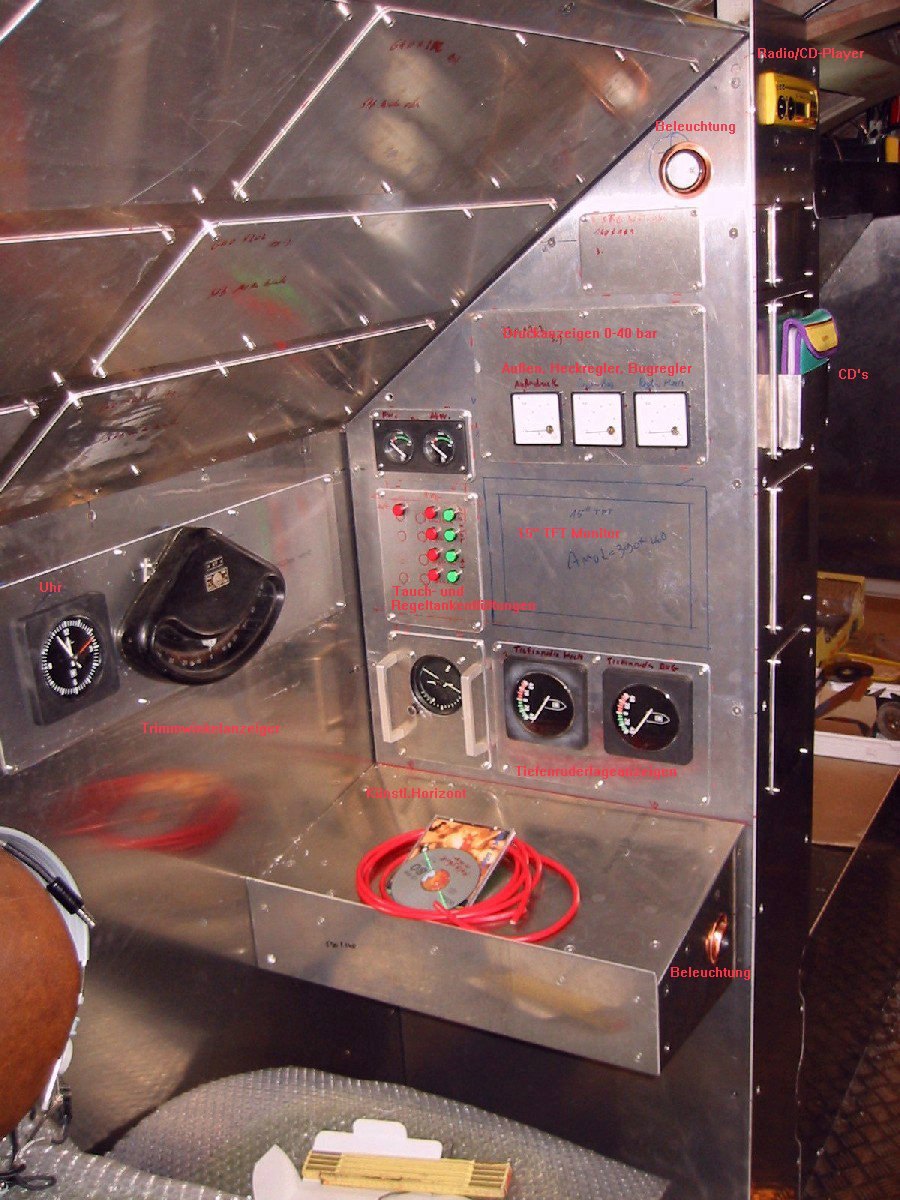

The operator's stand for dive-control. Here, the fins and all tanks with their pump-controllers are controlled.

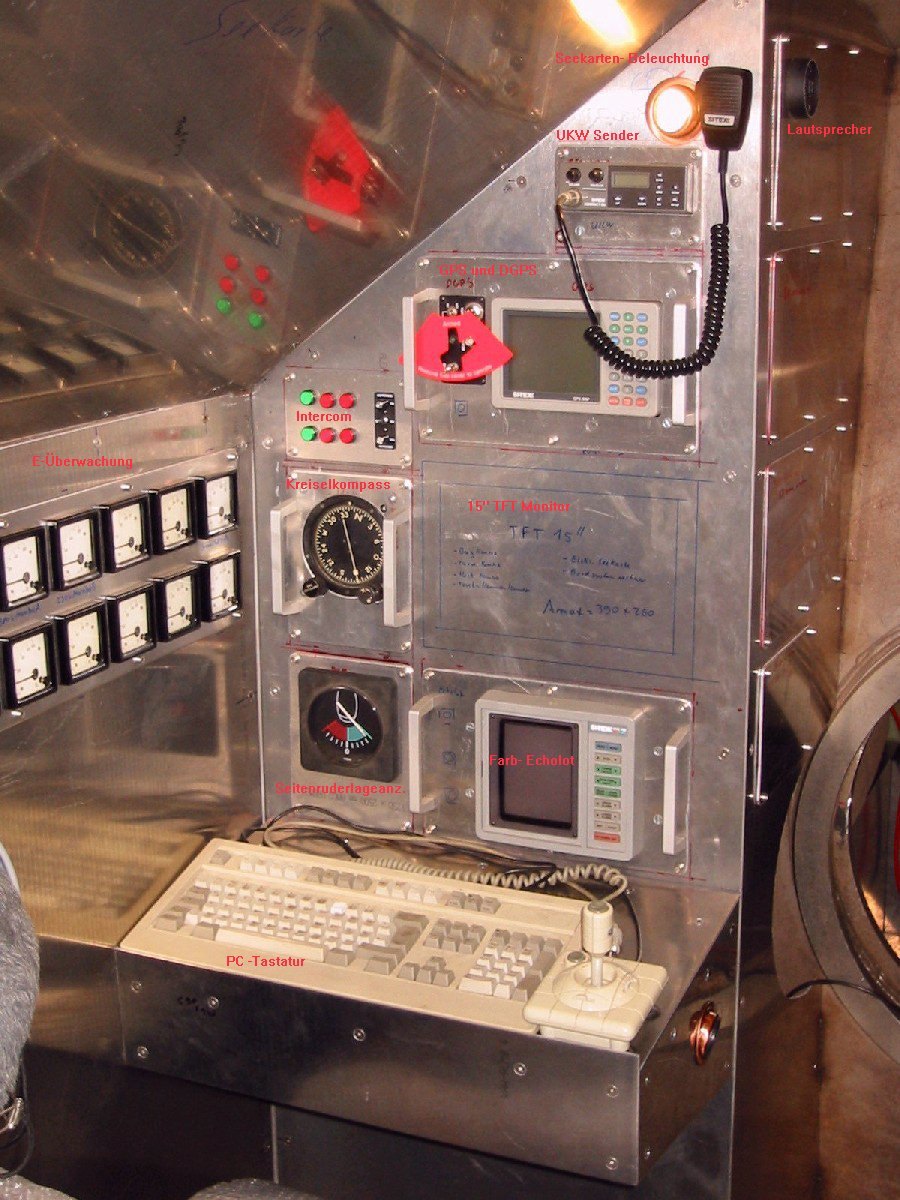

The workspace of the navigator. Radio, satellite-positioning, intercom, compass, rudders, sonar and driving the surfaced boat are located here.

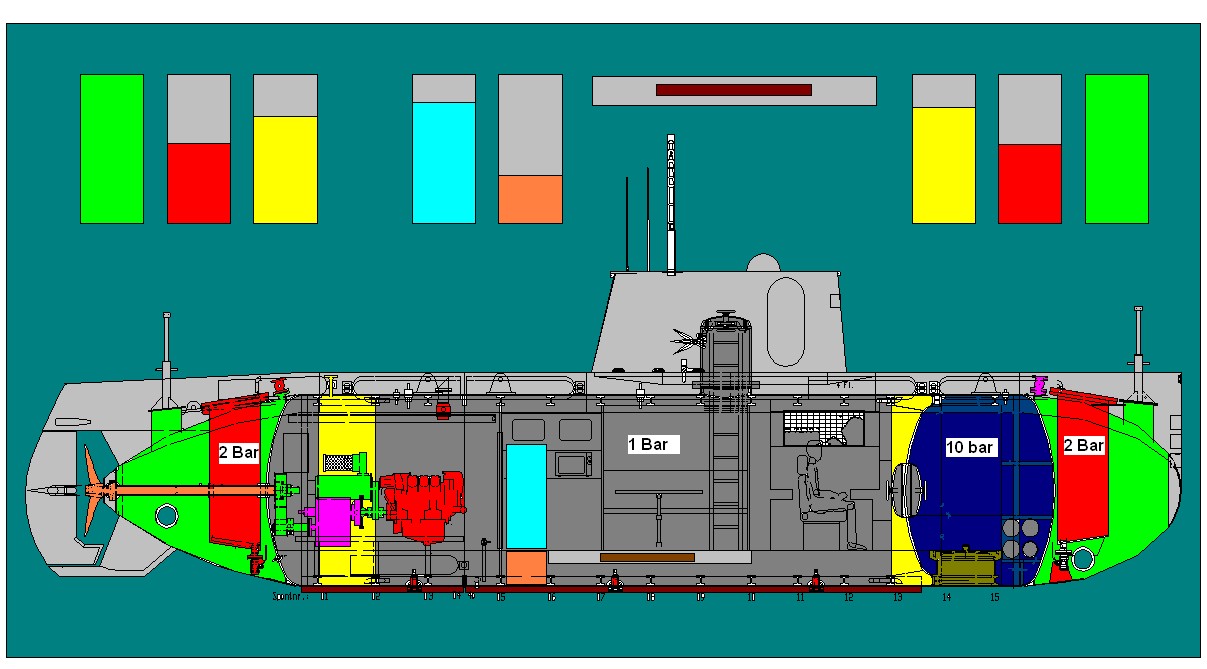

This diagram is a snapshot for a planned computer supported status field to get information about the different tanks aboard. The green ones are dive-tanks, the red ones are dive-controllers, the yellow one is filled with diesel, also light blue and orangebrown ones for fresh and dirty water. Another one (brown) shows the trim-drive-block and the dive-chamber (dark blue).
Every fillstatus is shown in a histogram with clearly readable percent value next to it.
